Cherylas Therapy Laser – High Power 60W Class IV Laser Therapy Without Limits

Cherylas therapy laser manufactured by Dimed delivers up to 60W of high-intensity laser therapy with wavelengths of 810nm, 940nm, 980nm, and 1064nm. Designed for physical therapists seeking powerful, drug-free solutions for acute injuries, chronic pain, inflammation, arthritis, and deep tissue recovery. It is ideal for physiotherapy, sports medicine, rehabilitation and chronic pain management.

Why Cherylas Therapy Laser

Colour touch screen

7-inch high resolution touch screen, with extra-large viewing area provides a smooth, quick and effortless touch experience

Advanced cooling system

Through hundreds of thermal analysis simulation, it can work continuously at least 4 hours, no overheating problem

Intuitive user interface

The intuitive operation system with different power levels, three operating modes (cw, single pulse, repeat pulse) and timer selections allow users to use, adjust and save protocols easily

Stable working performance

Cherylas is designed with enhanced internal hardware structure and optimized software programs that it can be applied in various laser treatment scenarios for a long time with optimal performance and reliability

Multi-wavelength combinations

We can combine 1-4 wavelengths 810nm + 915nm + 980nm + 1064nm, simultaneously or independently

Multi-functional handpiece

Convenient finger switch for true portability, easy replacement for different heads

Smart unattended mode

Incredible hands-free physiotherapy treatment while allowing doctors to see other patients at the same time

Plug-in type fiber port

Front access portis, convenient for replacing different handpieces, to meet different clinic applications

Clinical Applications in Physical Therapy

Cherylas class IV therapy laser has adjustable 15-30mm physiotherapy head and bio-stimulation heads. Moreover, optional glass ball heads can be pressed on the skin, high power can deliver more energy dose into deep tissue. Very effective for below:

  • Neck pain
  • Migraines / Headache
  • Rotator cuff syndrome
  • Osteoarthritis
  • Muscle strains / Ligament sprains
  • Carpal tunnel syndrome
  • Lumbar arthrosis
  • Tennis elbow
  • Bursitis
  • Knee pain / Ligament injuries
  • Plantar fasciitis
  • Achilles tendinitis
  • Neuropathy

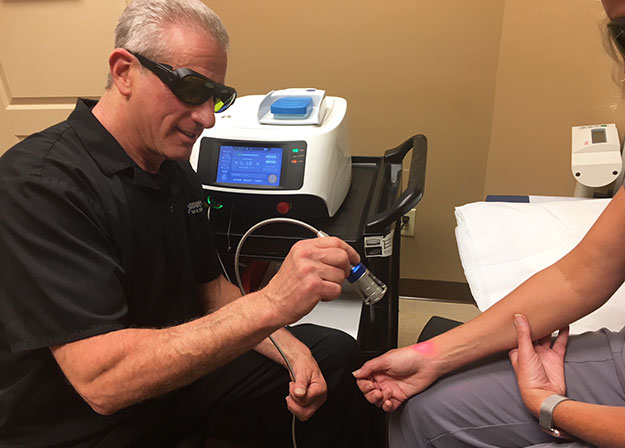

Physical Therapy Laser for Human
Veterinary Laser Therapy

Cherylas Therapy Laser can be easily applied by veterinarians to do a wide range of physiotherapy and minimally invasive surgeries for various small and big animals, including equines, dogs, cats, rabbits, murid, birds and etc. It is a complete choice for pet clinics, animal hospitals and veterinarians, with obvious treatment effect for below clinical applications:

  • Arthritis
  • Degenerative joint disease
  • Tendon suspensory and ligament disorders
  • Back and muscle soreness
  • Disc and neurologic pathologies
  • Stifle hip and sacroiliac disorders
  • Epiphysitis, carpitis, sesamoiditis
  • Pre and post-surgical hard and soft tissue trauma
  • Wound healing – acute or chronic
  • Acral lick granuloma ablation
  • Anal sac abcessation
  • Castration
  • Fibrosarcoma

Technical Specifications

Product Cherylas Therapy Laser
Laser Type GaAIAs Diode Laser
Model Cherylas-D3E Cherylas-D3F
Wavelength 810nm+980nm+1064nm 810nm+980nm+1064nm
Maximum Power 15W+15W+15W 30W+30W+30W
Operation Mode Continuous Wave, Single or Repeat Pulses
Pulse Duration 10us-3s
Repetition Rate 0.2Hz-50KHz
Aiming Beam Red Diode Laser of 650nm, Power<5mW
Control Mode True Color Touch Screen (7 inches, High-resolution 600*1024px)
Transmission System Medical Fibers with SMA905 Connector
Dimensions 380(W)*430(L)*220(H)mm
Weight 11Kg
